Desiccant & Mechanical Dehumidification Systems for Industrial Applications



As a representative of Munters Industrial Dehumidification we can supply and configure a wide range of dehumidifiers and dehumidification systems, with air volumes as low as 50 cfm up to and beyond 100,000 cfm. Munters manufactures and services Cargocaire desiccant dehumidifiers and dehumidification systems. Our equipment removes moisture from the air, which allows you to control humidity in your buildings and industrial processes to very low levels. Our equipment is used by more than 20 major industries which use our products for more than 150 different applications. All dehumidification up to 9.000 cfm units are available for rent so you can try them before you buy for urgent or temporary situations.



> Integrated Custom Air Handler (ICA)

> Modular Units with Options (HCD)

> Large-Scale Modular Dehumidifiers (HCE)

> Special Purpose Dehumidifiers >

DRYCOOL ERV: Desiccant Dehumidifier >

Mechanical Dehumidification

» View Munters’ Dehumidification brochure for more information [PDF 1385 KB]

Stand-alone Dehumidifiers

600



















Small stand-alone desiccant dehumidifiers used in smaller rooms, chambers or storage applications. In stock or quick lead-times.

Capabilities:

  • 30-300 scfm airflow range
  • Durable aluminum construction
  • Compact and efficient design
  • CE or ETL Certified
  • Humidistat control option

» MG90 [PDF 153 KB] » HC-150 [PDF 195 KB] » HC-300 [PDF 192 KB]

Integrated Custom Air Handler (ICA)

ICA Integrated Custom Air Handler

The ICA is a state-of-the-art double wall custom air handling system. Its unique panel design provides a true no through metal construction. Panels are available in 2.5″ and 4.0″ thick construction to prevent external condensation in even the toughest environments. The large, smooth-fitting panels of the ICA create fewer joints, preventing leaks and improving sanitation. The ICA concept can save thousands of dollars and reduce coordination problems on the job site because the system arrives ready-to-run after connection of duct work and utilities. Your in-house design time is reduced and on-site construction is simplified. And for ICA systems, factory-trained service engineers are available for start-up and service contracts. » View the Brochure [PDF 874 KB]

Available with Customization:

  • Engineering and Full Assembly
  • Conditioning System including Cooling and Heating Elements
  • Airflow capacities from 400 to 100,000 scfm
  • Control Packages
  • Power Purge Option [PDF 874KB]

Commonly used in:

  • Bio Tech/Pharmaceutical
  • Archives
  • Food Processing
  • Clean Rooms

Modular Units with Options (HCD)

HCD Dehumidifier

For customers who need to integrate desiccant dehumidifiers into their own processes or air conditioning systems, we offer the HCD-series. These modules can be combined to form even larger systems. Along with the basic HoneyCombe rotor-drive-and-seal assembly, we can provide your choice of process and reactivation fan and either gas, steam or electric reactivation heater modules for you to integrate into your system. We can also supply modular heating and cooling coils and filters in air-tight enclosures to work along with the dehumidifier. These modular dehumidifiers are used in a very wide variety of applications from preservation of classic films to chocolate coated candy and dry air systems for pharmaceutical manufacturing. » View the Brochure [PDF 145 KB]

Capabilities:

  • Capacities from 400 to 12,000 scfm
  • Basic HoneyCombe Rotor-Drive-and-Seal Assembly
  • Supply Modular Heating and Cooling Coils
  • Filters in Air-Tight Enclosures
  • Modules can be combined

Large-Scale Modular Dehumidifiers (HCE)

HCE Large Scale Modular Dehumidifier

To dry airstreams larger than 10,000 sfcm that do not require treatment other than dehumidification, our HCE series of modular units are the ideal choice. Available in four sizes from 15,000 to 40,000 scfm, the HCE modules can be combined to dry airflows of any size. Our modular approach to large airflows is economical compared to a single-unit design because individual modules can be brought on-line or shut down as the moisture load changes. This avoids the cost of running a single large unit for a small moisture load. In some cases, the energy cost savings of a modular approach to large systems can be measured in tens of thousands of dollars per year.

Capabilities:

  • Four Sizes from 15,000 to 40,000 scfm
  • Economical Compared to a Single-Unit Design
  • Energy Cost Savings

Special Purpose Dehumidifiers

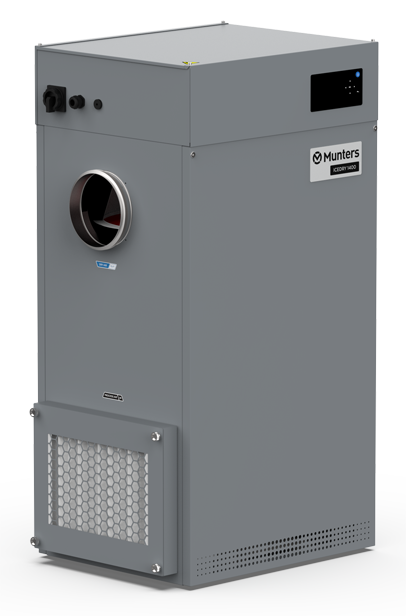

Occasionally, you made need dehumidification solutions that are highly specific to a single purpose. For example, we can design dehumidifiers with special materials and stringent vibration and noise specifications to dry out missile tubes in the Trident Nuclear Submarine. We also provide special portable dehumidifiers with structural bases and large casters which are used for temporary drying of buildings and emergency replacements in industrial processes. We can respond to unique situations, giving you just what you need at a price which meets your budget. » IceDry® Series Desiccant Dehumidifier [PDF 145 KB] » FreezeAire [PDF 86KB] » MODEL DEW 50 [PDF 599 KB]

Capabilities:

  • Highly Specific to a Single Purpose
  • Portable Dehumidifiers with Structural skids and cages for lifting purposes.
  • For Unique Situations
  • Military
  • For Shipping Ports and Vessels
  • Available Portable and Mobile

DRYCOOL Packaged Dehumidification Systems

Munters DryCool HCU dehumidification systems are designed to effectively treat 100% outside air to a lower dewpoint than can be achieved by conventional air conditioning.
» View the Brochure [PDF 368KB]
Main Benefits:

  • Energy efficiency
  • Simple installation, all electric packaged systems with controls
  • Includes dehumidification without additional heat source required

Standard Features:

  • 100% Makeup Air Operation
  • Sizes 1,000 to 16,000 scfm.
  • R-410a Refrigerant
  • CoGel Desiccant Wheel
  • Scroll Compressors
  • Galvalume Foam Injected Double Wall Construction
  • Supply and Exhaust Fans
  • Humidistat Controlled
  • ETL Listed

Unit Options:

  • Unoccupied Mode/Night Setback
  • Mixing dampers for return and make-up air
  • Corrosion Resistant Coatings
  • Gas, Electric, Hot Water, Steam Heat
  • Digital scroll compressors
  • Roof curb
  • BMS Interface
  • Extended Service Plans

DRYCOOL ERV: Desiccant Dehumidifier

The Munters DryCool ERV product combines the benefits of desiccant dehumidification with total energy recovery. The unit supplies 100% make up air utilizing energy recovery from the exhaust air stream. Packaged direct expansion cooling is included to provide a complete conditioning system. The unit provides space neutral leaving temperature. Dehumidification capacity is controlled by a space humidistat. » View the brochure [PDF 379KB]

Benefits:

  • Energy Efficient
  • Delivers Low Dew Point
  • Energy Recovery in Winter
  • Provides Make Up Air
  • Avoids Cool – Reheat
  • Dry, Healthy Duct Work
  • Increases Cooling COP

Standard Features:

  • 100% Makeup Air Operation
  • R-410a Refrigerant
  • CoGel Desiccant Wheel
  • Molecular Sieve Enthalpy Wheel
  • Scroll Compressors
  • Galvalume Foam Injected Double Wall Construction
  • Supply and Exhaust Fans
  • Humidistat Controlled
  • ETL Listed

Unit Options:

  • Unoccupied Mode/Night Setback Corrosion Resistant Coatings
  • Gas, Electric, Hot Water, Steam Heat
  • BMS Interface
  • Extended Service Plans

Mechanical Dehumidification

Wringer® The Wringer Series of packaged mechanical dehumidification units are designed to supply clean process air at a specific flow and moisture level. These units incorporate a heat exchanger to reduce the energy required to dehumidify the air. Wringers are normally employed when the supply air dew point requirement is above 40°F. Wringers use approximately 30% less energy than conventional dehumidification systems and provide free reheat. Wringers can incorporate integral refrigeration or utilize chilled water for dehumidification. Options such as auxiliary heating, special filtration, and DDC controls are available. Dehumidification Systems.

» View the Brochure [PDF 506KB]

Wringer Plus® Offering all of the benefits and features of the Wringer, the Wringer Plus goes a step further, reducing winter heating and summer mechanical cooling requirements through efficient recovery of energy from exhaust air. Wringer Plus units efficiently dehumidify outdoor air for processing, clean room and storage areas. Designed to deliver filtered, dehumidified outdoor air while allowing pressure in the space to be controlled (using the system’s exhaust/relief fan) — all while minimizing heating and cooling requirements through efficient air-to-air energy exchange — the Wringer Plus provides the ultimate economical dehumidification solution in humid climates.

» View the Brochure [PDF 425KB]
